Our Heat Exchanger and Condenser Tubes are engineered to facilitate efficient thermal energy transfer between fluids in high-pressure and high-temperature environments. Manufactured to global standards like ASTM A179 and TEMA, these tubes ensure maximum heat recovery and system longevity.
| Parameter | Specifications |
|---|---|
| Common Materials | Stainless Steel (304/316L), Copper Alloys, Titanium, Carbon Steel |
| Outside Diameter (OD) | 15.88 mm (5/8") to 50.8 mm (2") |
| Wall Thickness | 0.89 mm to 3.40 mm (Standard & Custom BWG) |
| Standard Compliance | ASME SB-167 ASME SB-423 ASME SB-163 ASME Sb338 |
| Operating Pressure | Vacuum to 130+ bar (Depending on grade) |
GB13296 Stainless Steel Seamless Tube for Boiler and Heat Exchanger
ASME SA213 Seamless Ferrite and Austenitic Alloy Steel Tube for Boiler, Superheater and Heat Exchanger
ASME SA249 Welded Austenitic Steel Tube for Boiler, Superheater, Heat Exchanger and Condenser Tube
ASME SA688 Welded Austenitic Stainless Steel Tube for Feed Water Heater
ASME SA789 Seamless and Welded Ferrite/Austenitic Stainless Steel Tube for General Use
ASME SB-167 ASME SB-423 ASME SB-163 ASME Sb338
These tubes are essential components in various industries, including:
Q: Which tube material is best for seawater cooling?
A: Titanium or Cupro-Nickel alloys are recommended for their superior resistance to chloride-induced corrosion.

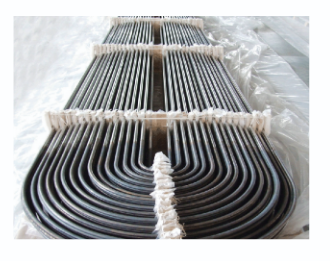

Q: Can you provide custom lengths or U-bend tubes?
A: Yes, we offer custom tube lengths and precision bending to meet specific drawings.
