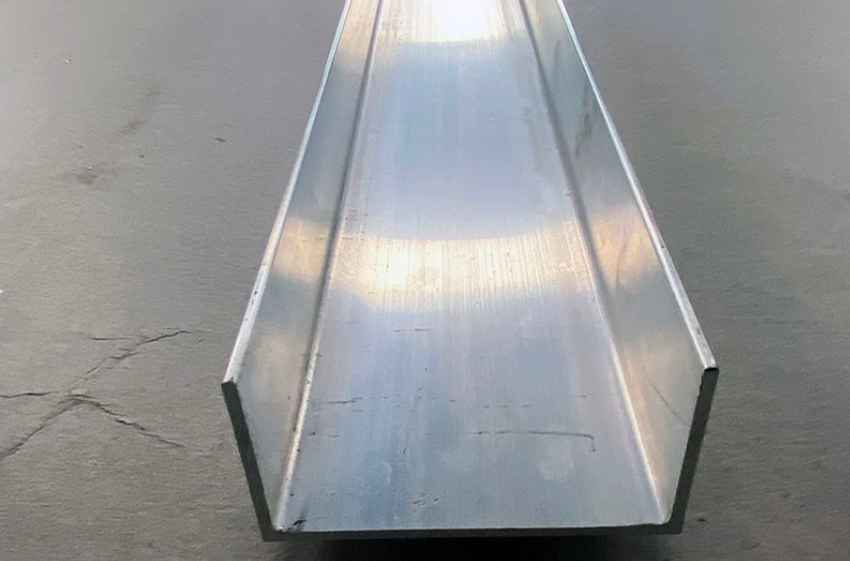

Marine-grade aluminum troughs: A U-shaped or channel profile used in drainage systems, cable management, and structural components in marine environments. They help guide or support materials while resisting corrosion.
Marine Grade Aluminum Trough U-shaped channel profiles are formed by extruding aluminum alloy through a shaped die to produce the distinctive U-shaped cross-section. Aluminum u channel comes in various sizes, such as 1/4 inch aluminum u channel.
| Height (H) mm | 25 | 25 | 40 | 50 | 100 | 25 | 50 | 50 |
| Width (W) mm | 25 | 50 | 50 | 50 | 80 | 100 | 100 | 100 |
| Thickness 1 (T1) mm | 3 | 3 | 4 | 5 | 8 | 3 | 4 | 5 |
| Thickness 2 (T2) mm | 3 | 3 | 4 | 5 | 8 | 3 | 4 | 5 |
Aluminum Trough U-shaped channel profile stock
| Product Name | Specifications (mm) | Brand | Mold No. | Weight per meter (kg/m) | Fixed length(m) | Previous period inventory |
| Trough Aluminum | C25*25*3 | 6082-T6 | YH-HZ-CL25*25*3 | 0.57 | 6 | 105 |
| Trough Aluminum | C39*52.8*4/6 | 6082-T6 | YH-HZ-C39*52.8*4/6 | 1.394 | 6 | 0 |
| Trough Aluminum | C44.5*25.4*3.2 | 6082-T6 | YH-HZ-CL44.5*25.4*3.2 | 0.773 | 6 | 51 |
| Trough Aluminum | C50*25*3 | 6082-T6 | CL50*25*3 | 0.774 | 6 | 199 |
| Trough Aluminum | C50*40*4 | 6082-T6 | YH-HZ-CL50*40*4 | 1.343 | 6 | 26 |
| Trough Aluminum | C50*50*5 | 6082-T6 | YH-HZ-C50*50*5 | 1.919 | 6 | 182 |
| Trough Aluminum | C50.8*50.8*6.4 | 6082-T6 | YH-HZ-CL50.8*50.8*6.4 | 2.43 | 6 | 11 |
| Trough Aluminum | C57.2*31.8*4.8 | 6082-T6 | YH-HZ-CL57.2*31.8*4.8 | 1.451 | 6 | 33 |
| Trough Aluminum | C76.2*44.5*6.4 | 6082-T6 | YH-HZ-CL76.2*44.5*6.4 | 2.652 | 6 | 23.5 |
| Trough Aluminum | C80*100*8 | 6082-T6 | YH-HZ-CL100×80×8 | 5.742 | 6 | 80 |
| Trough Aluminum | C100*25*3 | 6082-T6 | CL100*25*3 | 1.182 | 6 | 102 |
| Trough Aluminum | C100*50*3 | 6082-T6 | CL100*50*3 | 1.59 | 6 | 33 |
| Trough Aluminum | C100*50*5 | 6082-T6 | HZAL-5 | 2.594 | 6 | 97 |
| Trough Aluminum | C101.6*50.8*6.4*7.9 | 6082-T6 | YH-HZ-CL101.6*50.8*7.9*6.4 | 3.677 | 6 | 77 |
| Trough Aluminum | C102*80*10 | 6082-T6 | YH-HZ-C102*80*10 | 6.608 | 6 | 30 |
| Trough Aluminum | C127*50.8*4 | 6082-T6 | YH-HZ-CL127*50.8*4 | 2.407 | 6 | 20 |
| Trough Aluminum | C127*50.8*6.4*7.9 | 6082-T6 | YH-HZ-CL127*50.8*7.9*6.4 | 4.118 | 6 | 10.5 |
| Trough Aluminum | C127*63.5*6.4*9.5 | 6082-T6 | YH-HZ-CL127*63.5*6.4*9.5 | 5.248 | 6 | 70 |
| Trough Aluminum | C152.4*76.2*6.4*9.5 | 6082-T6 | YH-HZ-CL152.4*76.2*9.5*6.4 | 6.26 | 6 | 20.5 |
| Trough Aluminum | C152.4*76.2*9.5*12.7 | 6082-T6 | YH-HZ-C152.4*76.2*9.5*12.7 | 8.546 | 6 | 10 |
| Trough Aluminum | CL203.2*76.2*9.5*12.7 | 6082-T6 | YH-HZ-CL203.2*76.2*9.5*12.7 | 9.858 | 6 |
