Transformer 1050 O aluminium strips for transformers winding, also called 1050 aluminum transformer strips foils, which are mainly used in the dry type and oil-immersed transformers winding.
The 1050 aluminium foils strips for transformers range from 0.2 mm to 3.5 mm thickness and 10 mm to 1600 mm width.
With high conductivity, good corrosion resistance and beautiful appearance, 1050 aluminum foils strips for transformers are essential materials in the process of producing transformers.
Alloy | 1050 aluminum strip for transformer winding |
Temper | O |
Specification | Thickness:0.1mm to 3.0mm Width:10mm to 1500mm |
Surface treatment | Mill finish 1050 aluminum strip |
Advantages | High precision, high conductivity, low side camber and no burr; Excellent silvery white luster, beautiful appearance; High strength |
Package | Fumigation-free of wood pallets, corrugated paper, paper angle protector, PVC film and desiccant |
Payment terms | 30% TT deposit in advance, the balance before shipment |
Delivery time | 15-20 working days |
MOQ | 2 tons of 1050 aluminum strip |
Loading Port | Shanghai port or Ningbo port |
| 1050 O Aluminium Foils Strips For Transformers Winding | |||||||
| Alloy | Temper(annealed) | Thickness(mm) | Tensile Strength | ||||
| Tensile Strength(Mpa) | Elongation(%) | ||||||
| >0.2~4.0 | ≥25 | ||||||
| Thickness Tolerance(mm) | |||||||
| Thickness(mm） | Tolerance(mm) | ||||||
| >0.20~0.40 | ±0.02 | ||||||
| >0.40~0.80 | ±0.03 | ||||||
| >0.80~1.10 | ±0.04 | ||||||
| >1.10~1.40 | ±0.05 | ||||||
| >1.40~2.00 | ±0.06 | ||||||
| >2.00~2.50 | ±0.07 | ||||||
| >2.50~3.00 | ±0.08 | ||||||
| Width Tolerance(mm) | |||||||
| Width(mm) | Thickness(mm) | ||||||
| ≤1.0 | >1.0~1.5 | >1.5~2.5 | |||||
| Width Tolerance(±) | |||||||
| ≤100 | 0.1 | 0.2 | 0.25 | ||||
| >100~300 | 0.15 | 0.25 | 0.3 | ||||
| >300~600 | 0.3 | 0.4 | 0.5 | ||||
| >600~1000 | 0.6 | 0.7 | – | ||||
Chemical Composition:
1050 aluminum strip chemical composition(%) | ||||||||
Element | Si | Fe | Cu | Mg | Mn | Ti | Zn | Al |
Standard Value | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.05 | Min. 99.50 |

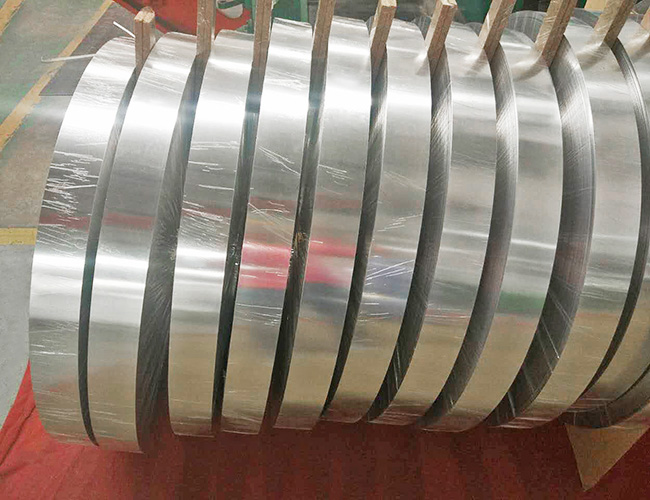

1050 Aluminum Strip Foil For Transformer Winding
Advantages:
A: Super Thin, No Burrs
B: Round Edge
C: High Conductivity
D: High Purity
E: Totally Annealed
F: Good Reputation
G. High Strangth
