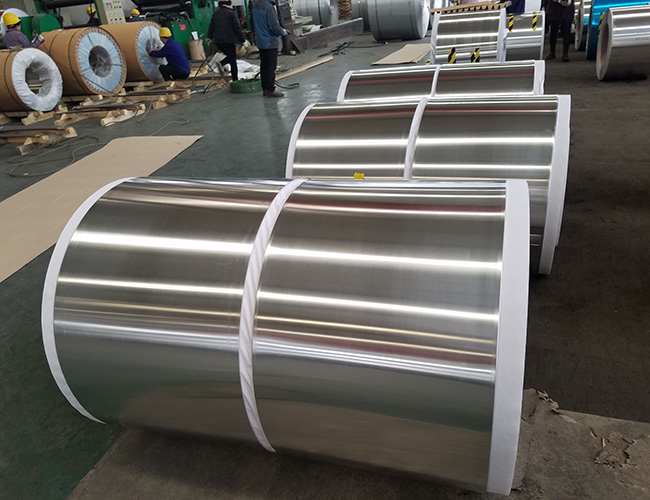

1060-O transformer aluminium strip for transformer winding
The 1060 transformer aluminum strip belongs to the pure aluminum strip product,.The aluminum content reaches 99.6% above.With good elongation, high conductivity and good heat dissipation, 1060 transformer aluminum strip is the most commonly used material in aluminum strip products.
Properties of 1060 aluminum foil :
Type:1060
Temper:O
Thickness: 0.2mm-3.0mm, Width:20-1450mm
Resistivity : less than 0.02825
Description: smooth surface, no scratches; deburring.
Package: wooden pallet ,paper sleeve, inner diameter 300mm or 500mm
Application: Used for transformer,electricity industry,solar energy, etc.
MOQ: 1 tons
Delivery Time:28 work days after deposit received
Chemical Composition（TABLE 1）
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al. | |
Individual | Total | |||||||||
Max. 0.25 | Max. | Max. | Max. | Max. | — | Max. | Max. | Max. | — | Min. 99.60 |
Mechanical properties and electric conductivity（TABLE 2）
Thickness(mm) | Tensile Strength(Mpa) | Elongation | Bending 180 buckling inside radius | Electric conductivity at 20 ℃ |
Over 0.3 to 0.5 | Min. 60 Max. 90 | 20 min. | Close contact | 61.0 min. |
Over 0.5 to 0.8 | 25 min. | |||
Over 0.8 to 1.3 | 30 min. | |||
Over 1.3 to 2.0 | 35 min. | |||
Over 2.0 to 2.5 | 35 min |

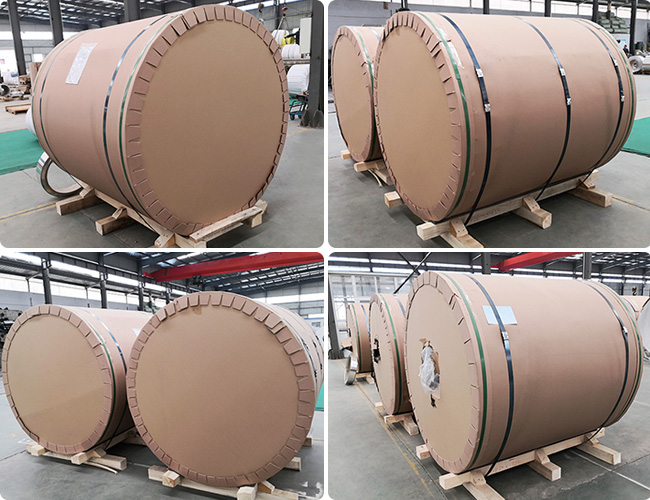

Packaging and Delivery of 1060 aluminum foil:
Packaging Details:waterproof paper or plastic cover the package ,then make the wooden pallet . eye to wall or eye to sky
Delivery Detail:20-25 days once received the deposit
Application:
1060 aluminum strip with low price and high conductivity, is suitable for transformer and electrical industry, especially the dry type transformer industry.It can take place of the ccopper strip and reduce the product cost.The heat dissipation effect of aluminum is relatively good, especially 1060 aluminum strip is a kind of pure aluminum product, which also suits to use in the radiator, the heat radiator, the fin dispersing heat pipe etc.
