Alu Alu foil is an excellent multilayered structure designed for highly sensitive range of pharmaceutical and generic medicines which are highly hygroscopic or light sensitive and cannot be suitably packed with barrier plastic films. It is hundred percent barriers to moisture, air, and gases, light and maximizes fracture-free forming capabilities and ensures “zero defects”. Superior process results in long term de-lamination resistance.
Cold Form Foil (PVC/OPA/Alu/PVC - 60/25/60/60)
Cold Form Foil (25 µm OPA/ 45 µm Alu foil/ 60 µm PVC)
Cold Form Foil (25 µm OPA/ 50 µm Alu foil/ 60 µm PVC)
Cold Form Foil (PVC/OPA/Alu/PVC - 60/25/50/60)
60 µm PVC/ 25 µm OPA/ 45 µm Alu foil/ 6-8 GSM Universal HSL
Cold Form Foil (25 µm OPA/ 50 µm Alu foil/ 60 µm PVC)
Cold Form Foil (PVC/OPA/Alu/PVC - 60/25/45/60)
Cold Form Foil (25 µm OPA/ 47 µm Alu foil/ 60 µm PVC)
Cold Form Foil (25 µm OPA/ 45 µm Alu foil/ 100 µm PVC)
60 µm PVC/ 25 µm OPA/ 50 µm Alu foil/ 6-8 GSM Universal HSL
Cold form Alu Alu is a first-rate multilayered structure suited for highly sensitive formulations in the most aesthetically-pleasing format that provides with protection against water vapor and gases and also acts as an excellent barrier against light and dust.
The Cold Form Alu Alu blisters produced at Pack Time are available with various printed patterns to give unique brand identity and also act as anti-counterfeit feature for the Pharma products.
| TRUCTURE | |||
|---|---|---|---|
| OPA Film | micron | 25 | ±10% |
| Adhesive | g/m2 | 4 | ±8% |
| Aluminum Soft Foil | micron | 45-60 | ±10% |
| Adhesive | g/m2 | 4 | ±8% |
| PVC film | micron | 60 | ±10% |
| Total Thickness | micron | 130-145 | ±10% |
| Total Weight | g/m2 | 250 | ±10% |
APPLICATION
Suitable for primary pharmaceutical blister packing products such as tablet, capsules, etc, which is sensitive to moisture penetration.

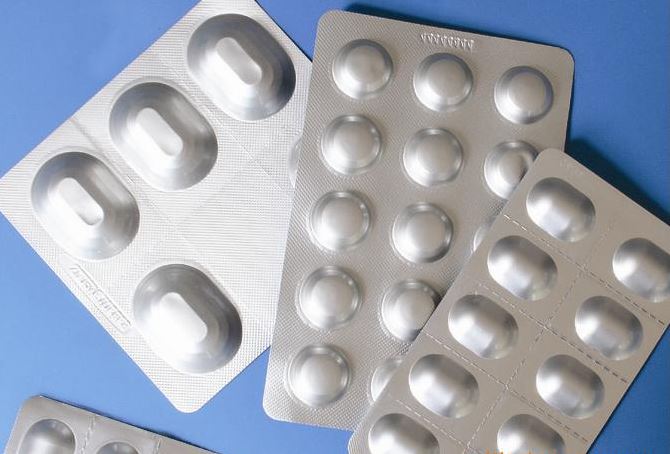

Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules etc. The primary component of blister pack is a cavity or pocket made from a formable film, usually a thermoformed plastic or cold formed aluminum film. This usually has a lidding seal of aluminum foil.
Using different packaging materials and principles of forming, Blister Packs may be divided into two types: aluminum/plastic (thermoforming) blister pack, aluminum/aluminum (cold forming) blister pack.
The most basic material for the forming web is PVC or Polyvinyl Chloride, for ease of thermoforming and low cost.
The product can be visually examined through the transparent plastic. The fault blister card can be rejected vie the inspecting camera or naked eyes.
Because the cavity or pocket contain the item snugly, it can adopt the universal feeder which consists of circular brushes and planetary agitators that sweep the products into blister pockets. Parts are not required for different formats. This feeder is noted for its low cost and ease of operation.
The use of aluminum offers a nearly complete barrier for moisture，light and oxygen, allowing an extended product expiration date.
The disadvantages of Thermoforming Blister Foil:
The protective properties are not strong because of the PVC’s poor barrier against moisture and oxygen ingress.
The slower speed of production compared to thermoforming;
The package is opaque, making the inspecting system, which rejects the faulty blister card, complicated and costly.
The cost of cold forming aluminum film is higher than PVC.
The larger size of the blister card (aluminum cannot be formed with near 90 degree angles) increases the material cost.
Because the cavity or pocket is larger than the drug, the feeder should be dedicated. this increases the cost and difficulty of operation.
Not suitable for light-sensitive drugs because of the transparency of PVC.
PRODUCING PROCESS: 1.printing → 2.laminated → 3.Curing → 4.cutting → 5.Quality Inspection → 6.Package →7.Delivery
