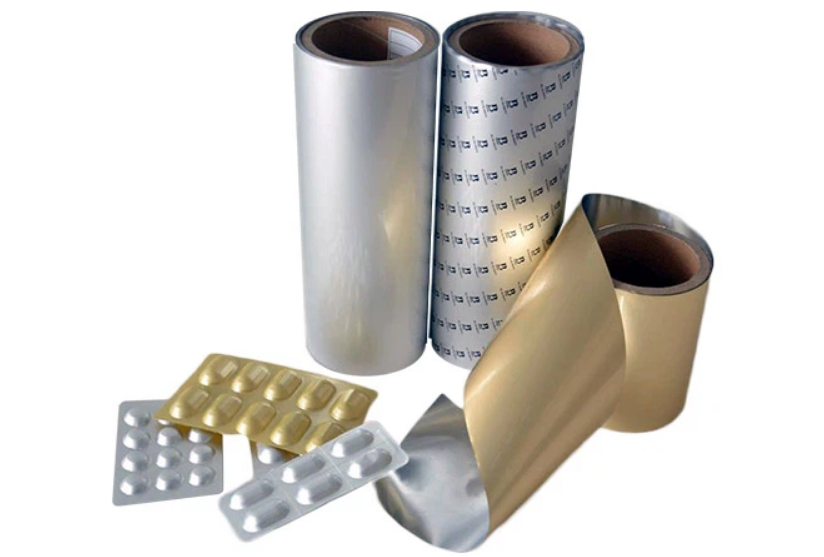

Cold forming aluminum foil, also known as Alu Alu foil, is the pinnacle of pharmaceutical packaging solutions. Designed to protect the most sensitive medications, this material offers unparalleled barrier properties, ensuring the integrity and efficacy of pharmaceuticals.

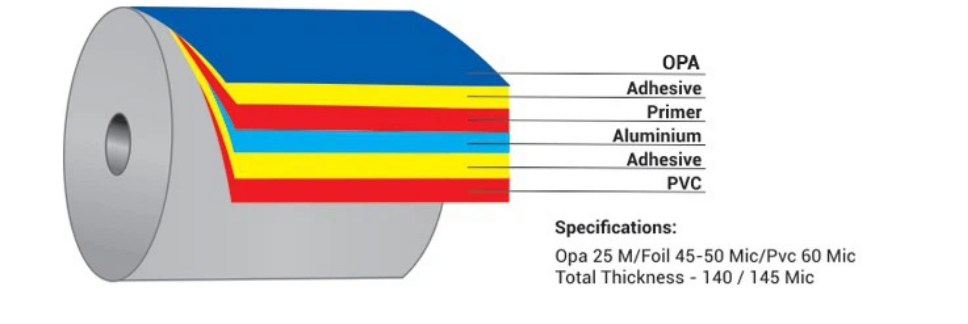

The multilayered structure of our Cold Form Aluminum Foil includes an OPA film, adhesive layers, aluminum soft foil, and a PVC film. Each layer is crafted for maximum protection and performance. The thickness of aluminum foil is generally 45-60 microns, and the commonly used alloys are 8011, 8079, or 8021.
Alloy：8011, 8021, 8079
Temper: Soft or O
Structure: OPA/Al/PVC
ThicknessOPA: 25mics Al: 45~60mics PVC: 60mics
Printing: Unprinted or 1~4 colors printing as required
Width: Customized from 60mm to 700mm
Inner core ID: 76mm or152mm
PackingStandard: pharmaceutical packing
| Component | Specification |
| OPA Film | 25 microns ± 10% |
| Adhesive (OPA-Al) | 4 g/m² ± 8% |
| Aluminum Foil | 45-60 microns ± 10% |
| Adhesive (Al-PVC) | 4 g/m² ± 8% |
| PVC Film | 60 microns ± 10% |
| Total Thickness | 130-145 microns ± 10% |
| Total Weight | 250 g/m² ± 10% |
| Feature | Description |
| Material Structure | Multi-layered structure comprising OPA, aluminum, and PVC films. |
| Barrier Protection | 100% barrier to moisture, air, gases, and light. |
| Durability | High fracture-free forminging capabilities and long-term delamination resistance. |
| Versatility | Suitable for a wide range of pharmaceutical products, including hygroscopic and light-sensitive drugs. |
| Thickness and Weight | Total thickness ranges from 130 to 145 microns; total weight is approximately 250 g/m². |
| Compliance | Meets stringent pharmaceutical packaging standards. |
