Alloy 8011 is a typical alloy for aluminum foil and which is currently the most widely used metal in our daily life. CHAL is specialized in the business of household foil, container foil, packaging foil as well as pharmaceutical foil. 8011 aluminum foils are available in various thicknesses, width,s and mill to finish with a shiny side and a matte side. The following datasheet will provide more details about aluminium foil.
| Type | 8011 aluminum foil |
Temper | O,H14,H16,H18,H19,H22,H24 |
Thickness (mm) | 0.006-0.2 |
Width (mm) | 100-1600 |
Length (mm) | C |
Typical Products | Medicine foil, adhesive tape foil, cable foil, lunch box material, food foil, etc. |
Standards:
ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
ID:76mm,152mm,408mm,508mm
Core material: steel ,aluminum ,paper
Package way:wooden box
8011 H18 is hardness temper aluminum foil
8011 H14 is half hardness temper aluminum foil
8011 O is the soft temper aluminum foil
What is the density of 8011 Aluminum Foil?
| Aluminum Foil Alloy | Density(g/cm3) |
| 1050 | 2.705 |
| 1060 | 2.705 |
| 1070 | 2.7 |
| 1100 | 2.71 |
| 1145 | 2.7 |
| 1200 | 2.7 |
| 1235 | 2.705 |
| 3003 | 2.73 |
| 5052 | 2.68 |
| 8006 | 2.74 |
| 8011 | 2.71 |
| 8011A | 2.71 |
| 8079 | 2.72 |
8011 Aluminium Foil properties:
High plasticity and corrosion resistance
Elevctrical conductivity and thermal conductivity
Gas welding,hydrogen welding and resistance welding
Under various pressure processing and extension,bending
8011 Aluminium Foil Chemical Composition:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
8011 | 0.50-0.90 | 0.6-1.0 | 0.10 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | 0.05 | 0.15 | remainder |
8011 Aluminium Foil application:
1.Food Preparation: Aluminum foil is “dual-ovenable” and can be used in both convection and fanassisted ovens. A popular use of foil is to cover thinner sections of poultry and meat to prevent overcooking. The USDA also provides recommendations on limited uses of aluminum foil in microwave ovens.
2.Insulation: Aluminum foil is 88 percent reflective and is widely used for thermal insulation, heat exchanges and cable liners. Foil-backed building insulation not only reflects heat, also provides a protective vapor barrier.
3.Electronics: Foil in electrical capacitors provides compact storage for electric charges. If the foil surface istreated, the oxide coating works as an insulator. Aluminum foil capacitors are commonly found in electrical equipment, including television sets and computers
4.Geochemical Sampling: Aluminum foil is used by geochemists to protect rock samples. Foil provides a seal from organic solvents and does not taint the samples as they are transported from the field to the lab.
5.Art and Decoration: Anodizing aluminum foil creates an oxide layer on the aluminum surface that can accept colored dyes or metallic salts. Through this technique, aluminum is used to created inexpensive, brightly colored foils.

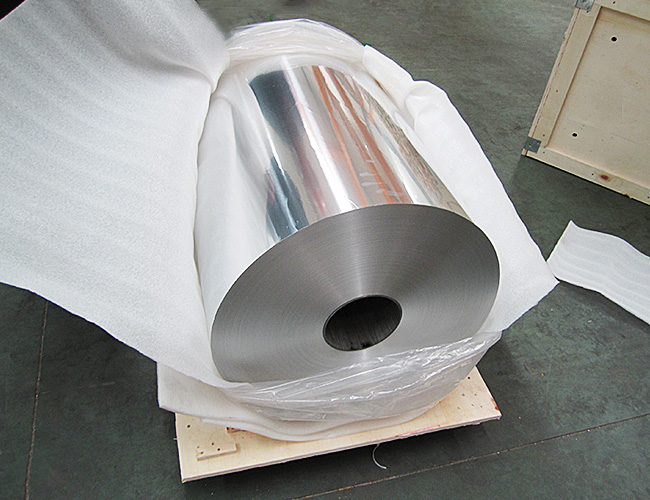

Package of 8011 Aluminium Foil:
For exported aluminum foil ,wooden box is necessary.and according to the different thickness, the wooden box made with different ways.Thicker foil ,we just need to put the foil laying on the pallet ,while double zero foil ,we need to package the aluminum foil on the air in case damages during transportation.
