Aluminium plate Supplier
Aluminium plate Supplier
HAOMEI specialized in cigarette inner line packing material field for many years with good quality and competitive price. We can offer a variety of aluminum foil paper products such as embossed aluminum foil paper, aluminum foil laminated paper, gold silver-card paperboard for cigarette packing.

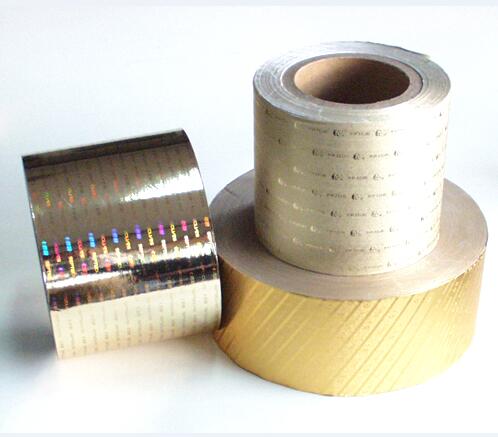

Aluminum foil for Tobacco
Tobacco is a perishable and often expensive consumer product and requires packaging that delivers it to the consumer in the very best of condition. Aluminum foil has been an integral part of this process since the 1950s.
The packaging of tobacco products calls for a careful balance between the protection of a sensitive and aromatic natural product and the presentation of brands striving for individual identity and appeal.
Aluminum foil has become the preferred barrier material, particularly for the inner liner of cigarette packets. This is because it combines the ability to retain the characteristic aroma peculiar to each blend and brand, within a unique quality of ‘feel’ and appearance which is light, robust and easy to re-seal.An aluminum foil/paper laminate also offers mechanical qualities not available in alternative materials.
Cigarette inner liners
Liners are the most familiar and significant use of aluminum foil due to its unique combination of barrier, embossing, dead fold and web strength properties.
The total barrier nature of an aluminum foil laminate is well illustrated by the retention of the added aroma when menthol is added to a cigarette liner laminate. The aluminum foil enables the menthol to permeate within the tobacco but prevents it from escaping to the outside of the pack. Also, added product identity can be given by the use of embossed designs – textures, lacquer colours and logos.
Product parameter:
Aluminum foil color | gold | silver |
Foil thickness | 6.3um | 6.3um |
Aluminum weight | 17.1gsm | 17.1gsm |
Paper weight | 27-74gsm | 27-74gsm |
Plastic weight | 0.5gsm | 0.5gsm |
Total thickness | 4.5-8.0um | 4.5-8.0um |
Total weight | 45-80gsm | 45-80gsm |
Friction coefficient | <0.18 | <0.18 |
Tension strength | 3kg/15mm min | 3kg/15mm min |
Elongation | 1% min | 1% min |
Brightness | As you required | As you required |
Roll width | 62-130mm | 62-130mm |
Roll length | As you required | As you required |
Diameter paper plate | 59.5mm or 60.5mm | 59.5mm or 60.5mm |
Introduction of aluminum foil paper:
Product name | Aluminium foil paper, aluminium foil paperboard, aluminium foil card board |
Specifications: | |
Material | base material: paper/paperboard |
surface material: aluminum foil | |
Use | 1) package(different size of gift wrap ); 2)decoration |
Shape | 1) roll; 2) sheet |
Color | 1) golden; 2) silvery; 3) as per customer's need |
Size | as per buyer's requirement |
Covering | one side |
Material:
The surface is aluminum foil ,The base paper is duplex paper, art paper, ivory board, liner paper or others.
Basic information :
weight according to the customers' special requirement(from 50gsm to 350gsm); Different sizes according to customers' special requirement;Different designs and colors (silver, golden, red, green, blue and etc) are available.
Features:
High gloss, smoothness of surface and excellent aluminum adhesion,strong metallic look, perfect metallization evenness;The material used are tasteless and innocuous
Features | 1. High strength |
2. Beautifull surface pattern | |
3. Non-toxic | |
4. Disposable, recyclable, eco-friendly |
Usage:
This kind of paper can be used for package of cigarette,gift and etc,
1. Tolerance and Technical property of aluminum foil paper:
2. Technical Specification
Parameter | Unit | Target | min | max | |
Grammage | Base Paper | g/㎡ | 25~60 | Target-2 | Target+2 |
Finished Products | g/㎡ | 44~79 |
|
| |
Moisture | % | 6 | 4 | 8 | |
ID of Inner Core | mm | 76 | 75 | 77 | |
Width | mm | customized | Target-0.5 | Target+0.5 |
Notes
1. Detailed technical test report available on request prior to or after shipment of goods; 2. Special requirments on technical spefications subject to further confirmation.
